This was a Tableau redo of Takafumi Shukuya’s work as seen on Tableau Public.
Dataset
The dataset can be found on the Makeover Monday website for Week 5.
Additional fields created
No additional fields created
Fields used
- Year
- Code (Country Code)
- Country (Country Description)
- Score
- Indicator (Dimension field)
Specification
The specification in a nutshell:
facet
* per Indicator
spec
* layer (for all countries excluding EU28)
* line (for the line chart)
* text (for the country code)
* layer (for EU28)
* line (for the line chart)
* text (for the country code)

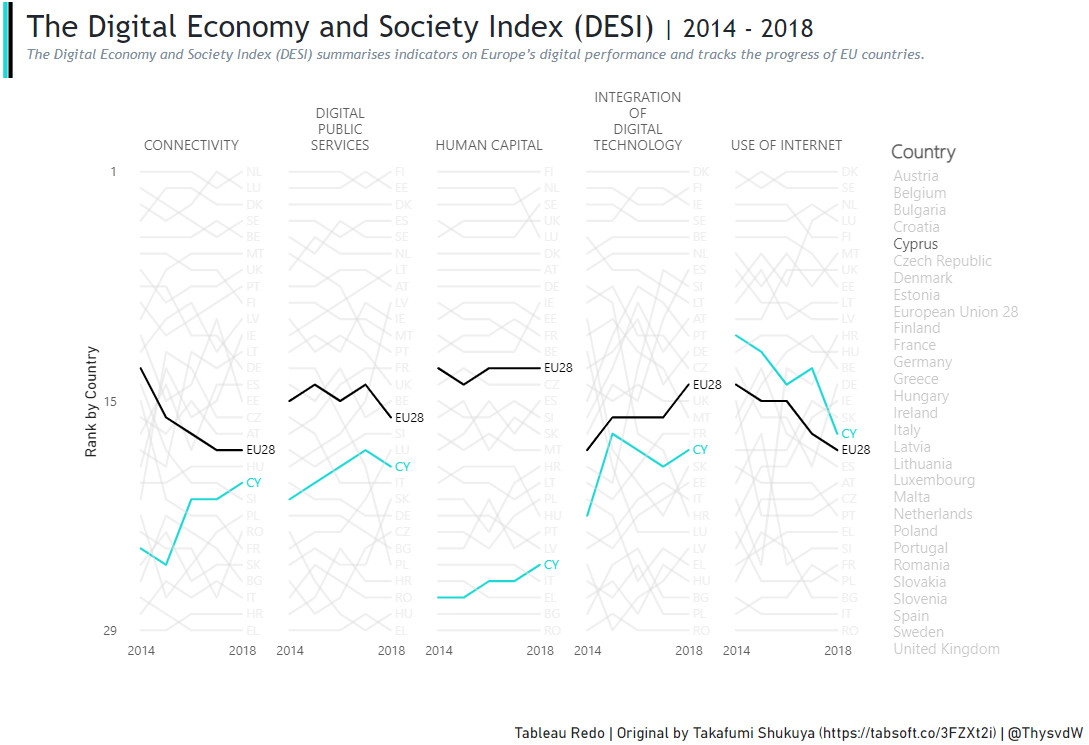

View chart
Open the Chart in the Vega Editor
JSON template
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
{
"$schema": "https://vega.github.io/schema/vega-lite/v5.json",
"usermeta": {
"deneb": {
"build": "1.2.0.1",
"metaVersion": 1,
"provider": "vegaLite",
"providerVersion": "5.2.0"
},
"interactivity": {
"tooltip": true,
"contextMenu": true,
"selection": false,
"highlight": false,
"dataPointLimit": 50
},
"information": {
"name": "The one with the rank chart",
"description": "Shows ranking per country of multiple dimensions; Legend is used as filter.",
"author": "Thys",
"uuid": "399fe811-c4e3-45fb-abb0-a886c0965871",
"generated": "2022-06-12T10:01:44.192Z"
},
"dataset": [
{
"key": "__0__",
"name": "Year",
"description": "Date field",
"type": "text",
"kind": "column"
},
{
"key": "__1__",
"name": "Code",
"description": "Country Code",
"type": "text",
"kind": "column"
},
{
"key": "__2__",
"name": "Country",
"description": "Country Name",
"type": "text",
"kind": "column"
},
{
"key": "__3__",
"name": "Indicator",
"description": "Dimension field to be analysed",
"type": "text",
"kind": "column"
},
{
"key": "__4__",
"name": "Score",
"description": "Measure to be reviewed",
"type": "numeric",
"kind": "measure"
}
]
},
"config": {
"autosize": {
"type": "fit",
"contains": "padding"
},
"view": {"stroke": "transparent"},
"font": "Segoe UI",
"arc": {},
"area": {
"line": true,
"opacity": 0.6
},
"bar": {},
"line": {
"strokeWidth": 2,
"strokeCap": "round",
"strokeJoin": "round"
},
"path": {},
"point": {
"filled": true,
"size": 75
},
"rect": {},
"shape": {},
"symbol": {
"strokeWidth": 1.5,
"size": 50
},
"text": {
"font": "Segoe UI",
"fontSize": 12,
"fill": "#605E5C"
},
"axis": {
"ticks": false,
"grid": false,
"domain": false,
"labelColor": "#605E5C",
"labelFontSize": 12,
"titleFont": "wf_standard-font, helvetica, arial, sans-serif",
"titleColor": "#252423",
"titleFontSize": 16,
"titleFontWeight": "normal"
},
"axisQuantitative": {
"tickCount": 3,
"grid": true,
"gridColor": "#C8C6C4",
"gridDash": [1, 5],
"labelFlush": false
},
"axisBand": {"tickExtra": true},
"axisX": {"labelPadding": 5},
"axisY": {"labelPadding": 10},
"header": {
"titleFont": "wf_standard-font, helvetica, arial, sans-serif",
"titleFontSize": 16,
"titleColor": "#252423",
"labelFont": "Segoe UI",
"labelFontSize": 13.333333333333332,
"labelColor": "#605E5C"
},
"legend": {
"titleFont": "Segoe UI Light",
"titleFontSize": 18,
"titleBaseline": "line-bottom",
"titleFontWeight": "bold",
"titleColor": "#605E5C",
"titlePadding": -12,
"labelFont": "Segoe UI",
"labelOffset": -12,
"labelFontSize": 14,
"labelColor": "#605E5C",
"symbolSize": 0
}
},
"data": {"name": "dataset"},
"transform": [
{
"sort": [
{
"field": "__4__",
"order": "descending"
}
],
"window": [
{"op": "rank", "as": "rank"}
],
"groupby": ["__0__", "__3__"]
},
{
"calculate": "length(datum['__3__']) > 20 ? split(upper(datum['__3__']), ' ') : upper(datum['__3__'])",
"as": "__Upper__"
}
],
"facet": {
"field": "__Upper__",
"header": null
},
"columns": 5,
"spacing": -10,
"spec": {
"width": 120,
"height": 450,
"encoding": {
"x": {
"field": "__0__",
"type": "ordinal",
"axis": {
"title": null,
"labelAngle": 0,
"values": [2014, 2018]
}
},
"y": {
"field": "rank",
"type": "ordinal",
"axis": {
"title": "Rank by Country",
"values": [1, 15, 29]
}
}
},
"layer": [
{
"encoding": {
"color": {
"condition": {
"param": "__select__",
"field": "__2__",
"type": "nominal",
"scale": {
"range": ["#00d8d6"]
}
},
"value": "#dedede"
},
"opacity": {
"condition": {
"param": "__select__",
"value": 1
},
"value": 0.5
}
},
"layer": [
{
"params": [
{
"name": "__select__",
"select": {
"type": "point",
"fields": ["__2__"]
},
"value": [
{"Country": "Cyprus"}
],
"bind": "legend"
}
],
"transform": [
{
"filter": "datum['__1__'] != 'EU28'"
}
],
"mark": {
"type": "line",
"orient": "vertical"
}
},
{
"mark": {
"type": "text",
"align": "left",
"dx": 4
},
"encoding": {
"x": {
"aggregate": "max",
"field": "__0__"
},
"y": {
"aggregate": {
"argmax": "__0__"
},
"field": "rank"
},
"text": {
"field": "__1__",
"type": "nominal"
}
}
}
]
},
{
"transform": [
{
"filter": "datum['__1__'] == 'EU28'"
}
],
"encoding": {
"color": {"value": "black"}
},
"layer": [
{
"mark": {
"type": "line",
"orient": "vertical"
}
},
{
"mark": {
"type": "text",
"align": "left",
"dx": 4
},
"encoding": {
"x": {
"aggregate": "max",
"field": "__0__"
},
"y": {
"aggregate": {
"argmax": "__0__"
},
"field": "rank"
},
"text": {
"field": "__1__",
"type": "nominal"
}
}
}
]
}
]
}
}
